Aidecoo 30x30x10mm dc fan,suitable for 3D printer & monitor & air purifier & navigator & health scanner & Environmental
Based on the URL you provided, it appears to be a product listing for a small DC fan suitable for use in 3D printers. The Aidecoo 30x30x10mm DC fan has dimensions of 30mm x 30mm x 10mm and is designed to provide cooling airflow for 3D printers.
Cooling is an important aspect of 3D printing, as the printing process generates a lot of heat that can cause problems such as warping and poor adhesion. Fans such as the Aidecoo 30x30x10mm DC fan can help
to cool the 3D printer components, including the hot end, extruder, and print bed, and ensure that the printed object is of high quality.
The Aidecoo 30x30x10mm DC fan is a small but powerful fan that can provide a good amount of airflow for 3D printers. Its small size also makes it a good fit for 3D printers with limited space.
If you have any specific questions about this product or need more information on DC fans and their applications in 3D printing, please let me know and I'll do my best to assist you.

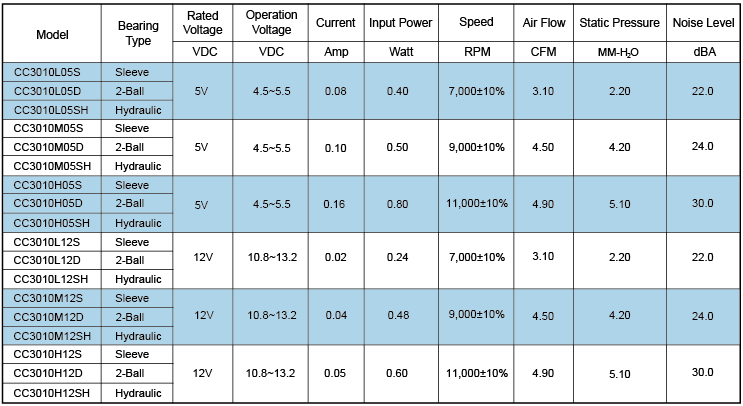

Parameters:
| Parts Specs: | | P&Q Curve |
| | | |
| Bearing type:Sleeve,2-Ball,Hydraulic
Material:
Frame & Impeler:PBT
Lead wire:
UL1571 AWG #28 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)
FG,PWM,RD,Protection functions are optional 5V,12V,24V are available
| |  |
Electrical Specifications:
| Insulation Resistance | 10MΩ/between unshackled wire and frame at 500VDC/min |
| Dielectric Strength | 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min |
| Rotating Direction | Anti-Clockwise |
| Polarity Protect | Circuit is protected when VCC&GND are exchanged |
| No. of pole | 4Poles |
Environmental Specifications
| Operating Temp Range | Temperature:-10℃~+70℃
Humidity:35%~85%RH |
| Store Temperature | Temperature:-40℃~+70℃
Humidity:35%~85%RH |
| Thermal Shock | Standard:MIL-STD 202F Method 107D,Condition D |
| Insulation Shock | UL:Class A |
Application:
