Aidecoolr 5010mm frameless fan, D46x10mm frameless fan
Based on the information provided by the link you shared, the product appears to be a frameless fan with dimensions of 50x50mm and a thickness of 10mm.
The frameless design can help reduce noise and increase airflow efficiency, making it ideal for use in applications where noise can be an issue.
The product is made from durable materials and is designed to be compact and easy to install.
However, the product page you linked does not provide additional information about the specific applications or use cases for this fan, so it's unclear what type of hardware or equipment it is designed for.
It's important to do your own research and make sure that this product is compatible with your specific hardware and voltage requirements before making a purchase.
| Model | Bearing
Type | | version | Rated
Voltage | current | Speed | Air Flow | static Pressure | Noise Level |
| voc | Amp | RPM | CFM | MM-HO | dBA |
| cC5010L128 | Sloovo | Frameless | | 12V | 0.05 | 3.500士10% | 5.9o | 1.10 | 20.0 |
| CC5010L12D | 2-Bal |
| cc5010M12s | sleeve | Frameless | | | o.09 | 4.500±10% | 7.30 | 1.80 | 28.0 |
| cc5010M12D | 2-Boll |
| cC5010H12S | Sloovo | Frameless | -A | | 0.17 | 5.500±10% | 9.00 | 2.30 | 32.0 |
| cc5010H12D | 2-Ball |
Parameters:

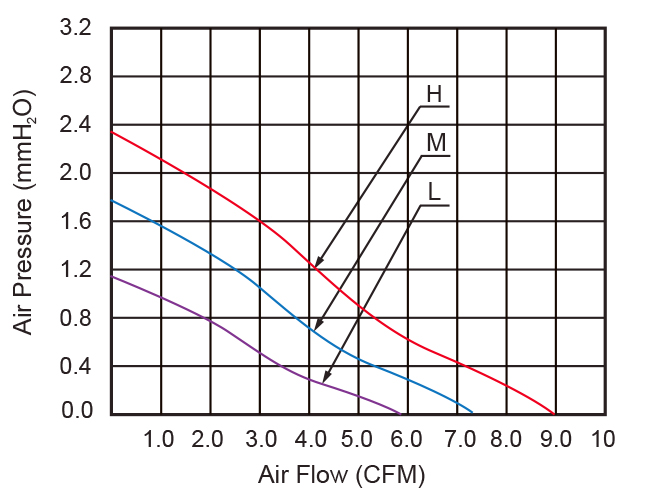

| Parts Specs: | | P&Q Curve |
| | | |
| Bearing type:Sleeve,2-Ball
Material:
Frame & Impeler:PBT
Lead wire:
UL1061 AWG #26 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)
FG,PWM,RD,Protection functions are optional 5V,12V,24V are available
| |  |
Electrical Specifications:
| Insulation Resistance | 10MΩ/between unshackled wire and frame at 500VDC/min |
| Dielectric Strength | 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min |
| Rotating Direction | Anti-Clockwise |
| Polarity Protect | Circuit is protected when VCC&GND are exchanged |
| No. of pole | 4Poles |
Environmental Specifications
| Operating Temp Range | Temperature:-10℃~+70℃
Humidity:35%~85%RH |
| Store Temperature | Temperature:-40℃~+70℃
Humidity:35%~85%RH |
| Thermal Shock | Standard:MIL-STD 202F Method 107D,Condition D |
| Insulation Shock | UL:Class A |
